Convergent Evolution: Why Secure Homomorphic Encryption Will Resemble High-Performance GPU Computing

• Written by Sunchul Jung (CryptoLab)

TL;DR: TODO

Fully Homomorphic Encryption (FHE) and high-performance GPU computing have evolved under fundamentally different pressures—security and performance—yet I argue that their programming models are converging toward a branch-free, massively parallel paradigm.

This convergence arises from FHE’s Turing Barrier: while FHE is theoretically Turing-complete, supporting secret-dependent control flow securely is practically infeasible without incurring combinatorial overheads. Meanwhile, GPUs evolved under different constraints—avoiding warp divergence—but reached similar design instincts: uniform, parallel-first kernels.

However, FHE introduces strictly stronger constraints than GPUs:

• Every kernel must be data-oblivious.
• Memory access patterns must remain uniform.
• The Host $\leftrightarrow$ Device(Trusted-Host $\leftrightarrow$ Secure-Kernel-Executor in the FHE context) offloading surface must be formally defined.

Using Quicksort and Approximate Nearest Neighbor (ANN) search as case studies, I show why pruning-based optimizations—highly effective in plaintext—become anti-secure under encryption. Recent works, including HEIR [1], SLOTHE [2], and PBS-based inference [3], confirm these fundamental constraints, demonstrating incremental improvements within fixed sandboxes but falling short of general solutions.

I conclude that the future of practical FHE lies in hybrid architectures where trusted clients orchestrate control flow and untrusted servers execute branchless, parallel secure kernels. GPU programming paradigms provide valuable blueprints, but advancing secure computation demands an FHE-native programming model.

Table of Contents

1. Introduction
2. Background: Fundamental Constraints
   2.1. The FHE Security Model and the Turing Barrier
   2.2. How FHE Compilers Handle Control Flow
   2.3. Compilation Resource Explosion Warning
   2.4. Programmable Bootstrapping and Its Limits
   2.5. Memory Access and ORAM Lower Bounds
3. Convergent Evolution: FHE and GPUs
4. A Practical Architecture: The Hybrid Model
5. Case Studies: The Parallel-First Imperative
6. Comparative Analysis of Recent Research
7. Implications for FHE Systems
8. Future Work: Toward FHE-Native Programming Models
9. Conclusion
10. References

1. Introduction

Fully Homomorphic Encryption (FHE) enables arbitrary computation on encrypted data without exposing plaintexts [Gentry 2009]. Meanwhile, GPUs have revolutionized computing by enabling massive parallelism, powering deep learning and high-performance computing [Owens et al. 2008].

Despite different origins, these two paradigms now face structurally similar challenges:

• For FHE, secret-dependent branching introduces side-channel leakage risks.
• For GPUs, divergent branching causes performance degradation.
• In both domains, uniform, parallel computation emerges as the natural solution.

This post explores:

1. Why FHE and GPU models are converging.
2. Why pruning-based optimizations fail under encryption.
3. Why problem redefinition—not translation—is key for FHE.
4. Why we must explicitly define the host-device offloading surface.
5. How recent research advances both reinforce and clarify these limits.

2. Background: Fundamental Constraints

2.1 The FHE Security Model and the Turing Barrier

An FHE scheme evaluates $f(\mathrm{Enc}(x)) \rightarrow \mathrm{Enc}(f(x))$ without revealing $x$. However, secure execution forbids revealing control flow or memory access patterns derived from secret data.

Dynamic branches and loops are problematic:

• if-else decisions → leak branch outcomes.
• Secret-dependent loops → leak iteration counts.

Thus, FHE programs must adopt data-oblivious execution [Goldreich & Ostrovsky 1996]:

• Evaluate both paths of all branches.
• Fix loop bounds to public constants.
• Make memory accesses uniform.

This reality is sometimes summarized as the Turing Barrier: FHE remains Turing-complete in theory, but secure evaluation under unrestricted control flow is practically infeasible.

2.2 How FHE Compilers Handle Control Flow

Most developers assume FHE behaves like a traditional runtime: write an if statement, and only the chosen branch executes. But this would leak secrets—if the server observes which path was taken, it learns private data.

Example: Encrypted Conditional

if (encrypted(cond))
    subroutine_a();
else
    subroutine_b();

In plaintext:

• Only one subroutine executes.
• Execution path leaks no sensitive info.

In FHE:

• If the server sees which branch executed, the condition is leaked.
• Therefore, both branches must always execute.

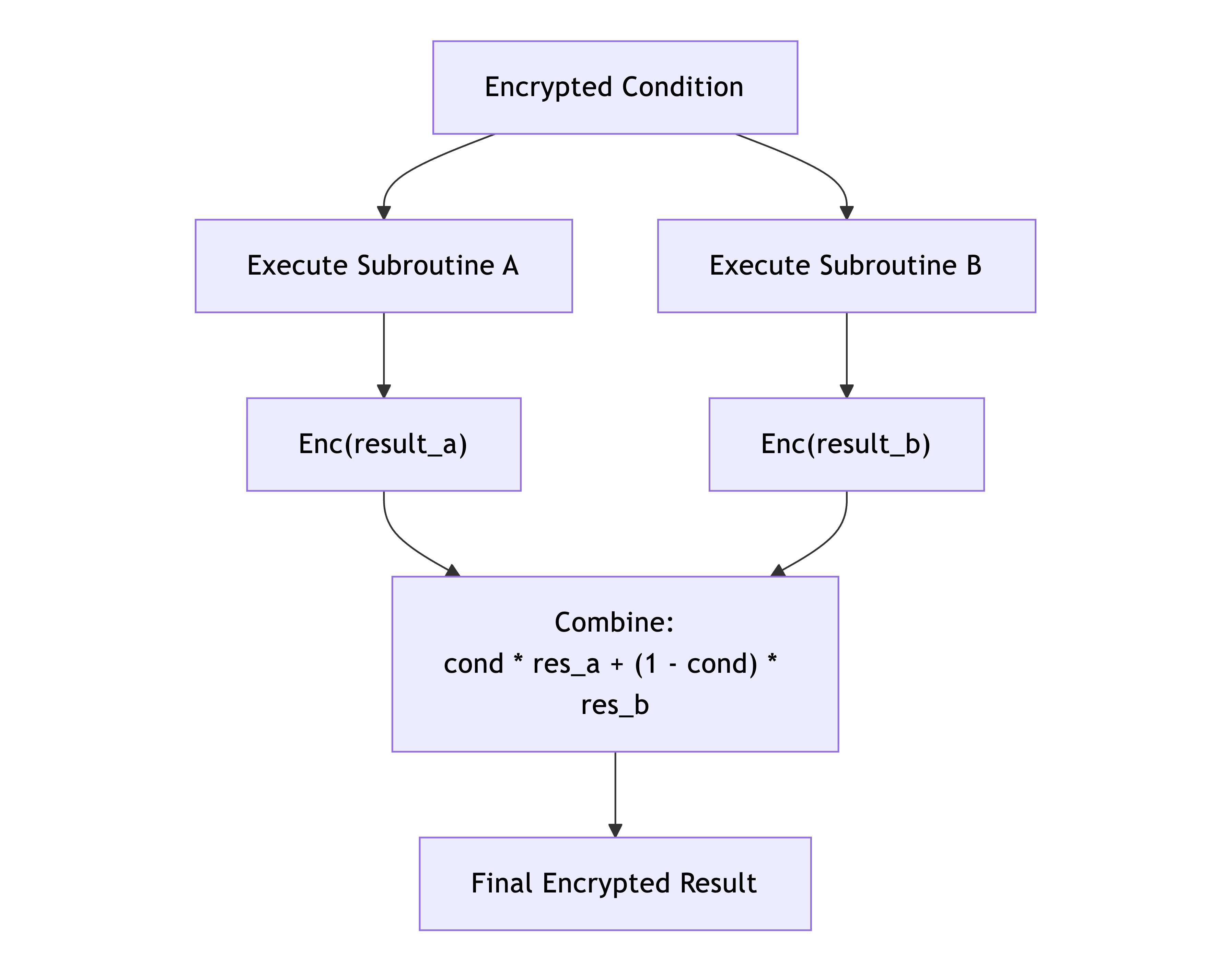

How the Compiler Handles It

1. Evaluate both subroutines
   • Enc(result_a) = subroutine_a(Enc(x))
   • Enc(result_b) = subroutine_b(Enc(x))

2. Select final result arithmetically
   Instead of branching, the compiler produces an arithmetic select: \(\mathrm{Enc}(r) = \mathrm{Enc}(\text{cond}) \cdot \mathrm{Enc}(r_a) + (1 - \mathrm{Enc}(\text{cond})) \cdot \mathrm{Enc}(r_b)\)

3. Loops become bounded
   • Secret-dependent while loops can’t terminate early.
   • The compiler executes a fixed upper bound of iterations, masking out unused results.

Key takeaway: Under FHE, writing if (encrypted(cond)) ... in source code does not imply conditional execution; the compiler always executes both paths and combines results securely.

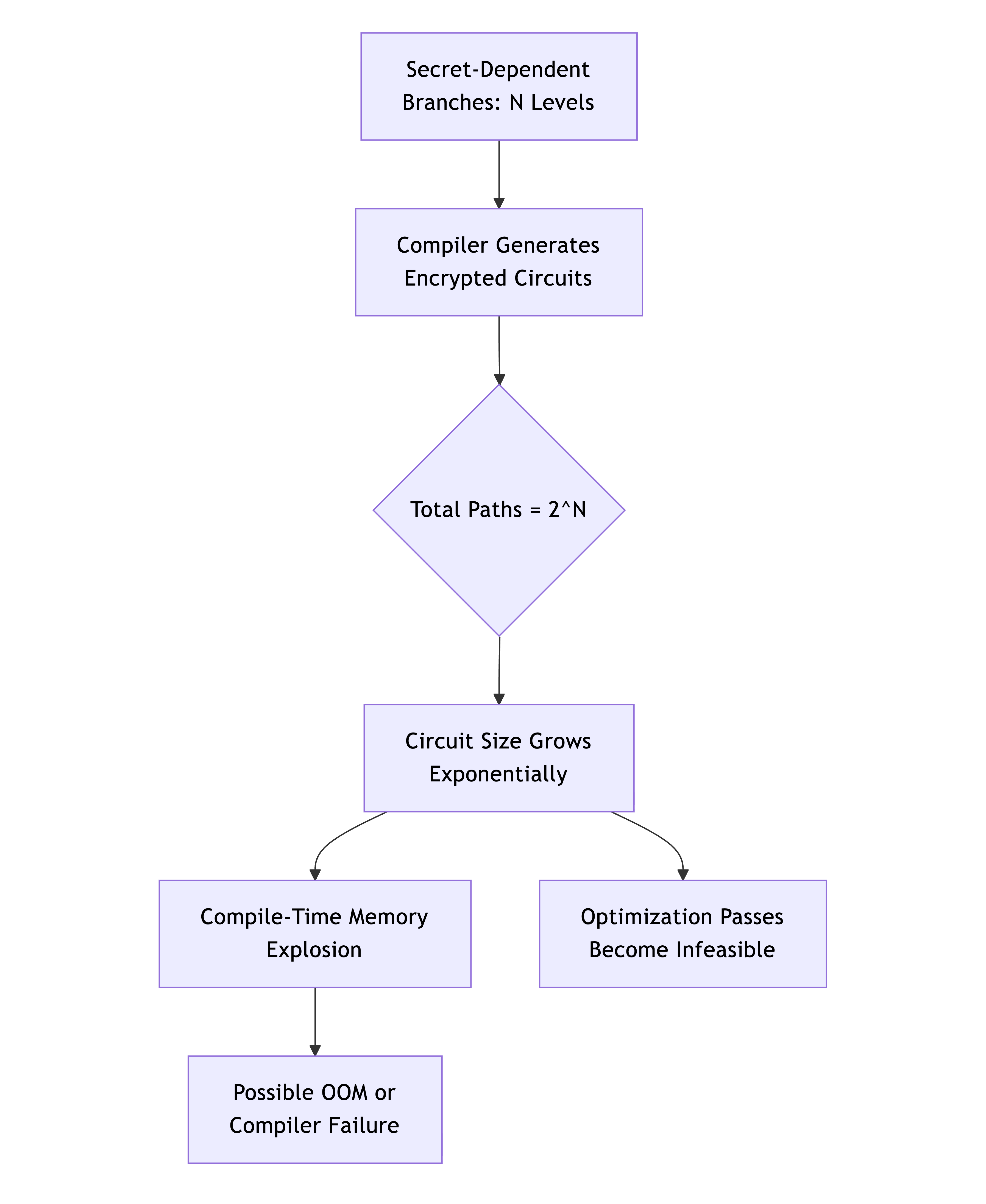

2.3 Compilation Resource Explosion Warning

It is important to note that the combinatorial blow-up caused by encrypted control flow affects not only runtime performance but also the compilation process itself.

For every secret-dependent branch, the FHE-aware compiler must materialize all possible subroutines into encrypted circuits. In the worst case, $N$ nested conditions yield:

• Circuit size: $O(2^N)$
• Compilation memory usage: exponential in branch count
• Circuit optimization passes: may become intractable

Recent experiments with LLVM-based FHE IRs such as HEIR confirm that, beyond a certain branching complexity, compilers frequently hit out-of-memory (OOM) errors — before execution even begins.

This demonstrates that directly translating branch-heavy business logic into FHE without algorithmic adaptation is infeasible. Problem redefinition is not an optimization choice — it is a requirement for tractable FHE compilation.

2.4 Programmable Bootstrapping and Its Limits

TFHE’s Programmable Bootstrapping (PBS) [Chillotti et al. 2020] enables efficient LUT-based evaluation of small non-linear functions. Recent works like SLOTHE [2] further optimize PBS calls, reducing cost by compressing LUT evaluation.

However, PBS does not eliminate the combinatorial blow-up of complex business logic:

• SLOTHE’s optimizations are pattern-limited, applicable to fixed, low-dimensional functions.
• Decision-tree inference using PBS [3] works only for small, fixed-depth trees; adaptive branching remains insecure.

PBS provides a valuable tool but not a universal escape hatch.

2.5 Memory Access and ORAM Lower Bounds

When computations require secret-dependent memory access, Oblivious RAM (ORAM) must be used to hide patterns [Goldreich & Ostrovsky 1996]. However:

• ORAM has a provable lower bound: $\Omega(\log n)$ per access.
• Even optimal constructions like OptORAMa (2022) cannot break this limit.
• For large-scale workloads, ORAM costs dominate if memory access depends on secrets.

Implication: Secret-driven memory access cannot be made “cheap” under FHE. Algorithms must be redesigned to avoid adaptive memory patterns.

3. Convergent Evolution: FHE and GPUs

FHE and GPU computing converge structurally, despite orthogonal motivations.

Unlike GPUs, FHE cannot rely on emergent patterns or serendipitous alignment. We must explicitly define host-device offloading and design kernels intentionally.

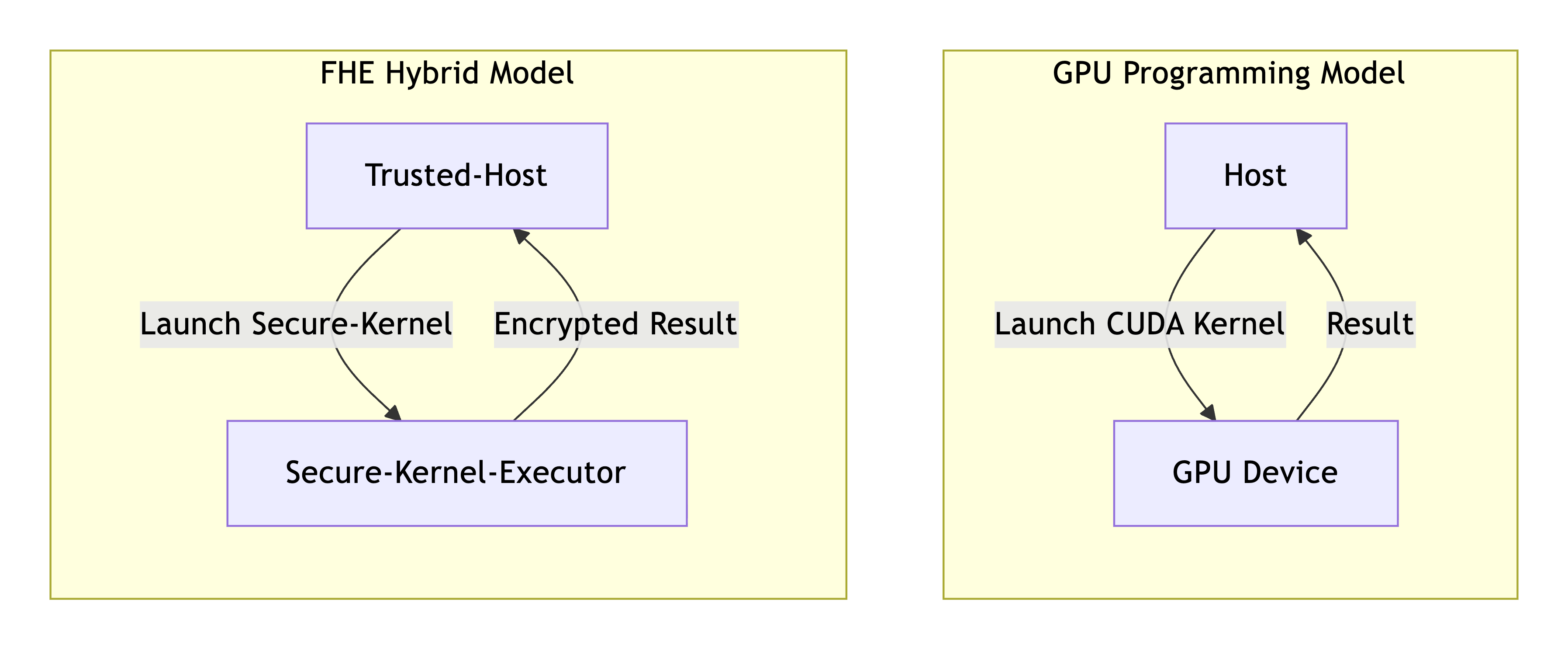

4. A Practical Architecture: The Hybrid Model

Terminology Note: I borrow the host-device terminology from GPU programming models (e.g., CUDA, ROCm, SYCL) for intuitive consistency. In the FHE context:

• Host → Trusted-Host: Orchestrates application logic, manages secret-dependent control flow, and launches secure kernels.
• Device → Secure-Kernel-Executor: Executes branchless, data-oblivious kernels on encrypted inputs in an untrusted environment.

4.1 Note on GPU Programming Models

Although I borrow GPU programming terminology, GPU programming models themselves are not fully standardized:

• Multiple ecosystems: CUDA, ROCm, SYCL, OpenCL coexist with different runtime semantics.
• Offloading is API-driven: AI workloads are often expressed via linear algebra libraries like cuBLAS, cuDNN, or TensorRT, not formal control-flow abstractions.
• Lack of rigorous semantics: There is no mathematically formal definition of when, how, and why computations transition between host and device.

This reality implies an even greater challenge for FHE: we must explicitly define the offloading boundary between the Trusted-Host and the Secure-Kernel-Executor, because FHE imposes far stricter constraints than GPUs.

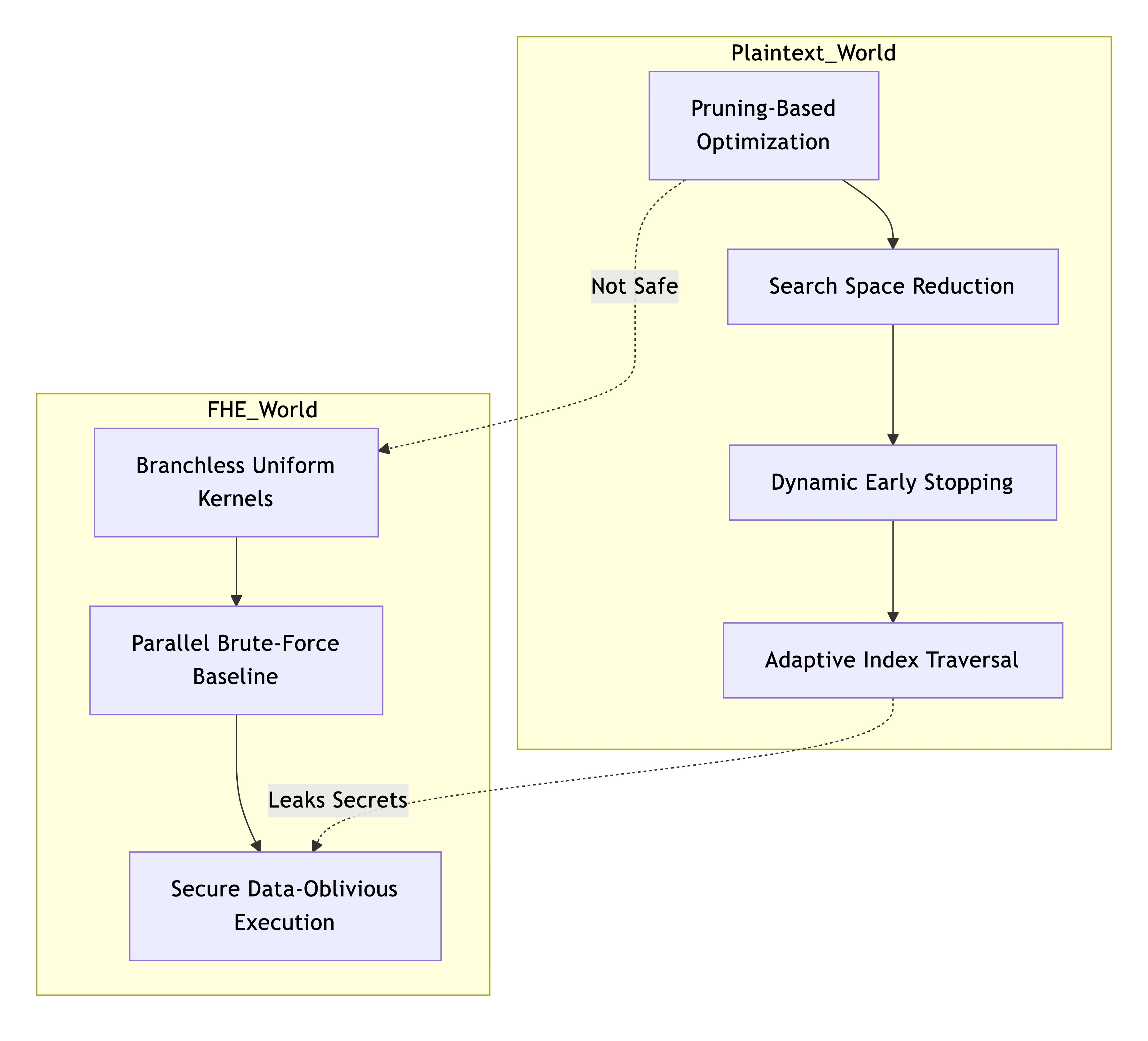

5. Case Studies: The Parallel-First Imperative

Developers often assume FHE’s Turing completeness implies pruning-based optimizations can be directly ported. However, pruning—adaptive traversal, early stopping, selective evaluation—is anti-secure.

5.1 Sorting

• Quicksort (Anti-FHE): Adaptive pivots and partitions leak structural information.
• Sorting Networks (FHE-Friendly): Fixed compare-swap sequences (e.g., Bitonic Sort) → uniform, oblivious, parallelizable.

5.2 Approximate Nearest Neighbor (ANN)

• HNSW (Anti-FHE): Adaptive graph traversal leaks query-specific paths.
• Brute-Force Scan (FHE-Compatible): Evaluate distances for all vectors uniformly.

Key Insight: In FHE, brute force is the baseline, not the fallback. Performance gains come from parallelizing fixed workloads, not pruning.

6. Comparative Analysis of Recent Research

Takeaway: Recent progress expands FHE’s reach but validates the central thesis: general-purpose, efficient, secure FHE requires problem redefinition, not direct translation.

7. Implications for FHE Systems

• FHE-aware compilers must act as policy enforcers not a magician:
  • Convert branches into predicated arithmetic.
  • Enforce loop unrolling to constant bounds.
  • Optimize SIMD-style ciphertext packing.
• Hardware accelerators for FHE will increasingly resemble GPUs:
  • High-throughput execution cores.
  • On-die NTT engines.
  • High-bandwidth memory for ciphertext batching.
• Design implication: The parallel-first paradigm isn’t just optimal — it’s necessary for secure performance.

8. Future Work: Toward FHE-Native Programming Models

• Short-Term Goals:
  • Expand libraries of FHE-friendly kernels (sorting, ANN, linear algebra).
  • Selectively integrate PBS for local non-linearities.
• Long-Term Challenges:
  • Define formal offloading surfaces for hybrid architectures.
  • Develop FHE-native primitives for graphs, ML inference, and ANN.
  • Reimagine compilers as policy enforcers, not universal translators.

9. Conclusion

FHE’s Turing completeness remains intact theoretically, but secure practical computation demands problem redefinition:

• Branching-based pruning accelerates plaintext workloads.
• Under encryption, pruning leaks secrets or introduces prohibitive costs.

The future of FHE requires:

• Hybrid architectures with explicit host-device boundaries.
• Branchless, parallel-first problem formulations.
• Leveraging GPU-inspired execution models while respecting FHE’s stricter constraints.

Stop translating. Start redefining.

10. References

[1] Riazi et al., “HEIR: A Common Intermediate Representation for Homomorphic Encryption”, IACR ePrint 2025.
[2] Khedr et al., “SLOTHE: Programmable Bootstrapping Optimizations for TFHE”, USENIX Security 2025.
[3] Chou et al., “Efficient Tree Inference with TFHE Bootstrapping”, PETS 2023.
[4] Goldreich & Ostrovsky, “Software Protection and Simulation on Oblivious RAMs”, JACM 1996.
